PolyRhythm is a dual analog filter + phaser box. It has two voltage controlled filters and a low-frequency oscillator made from authentic Soviet components. It has 8 knobs, 5 switches with which you can control the parameters of the sound. Both filters are made of components and circuitry in accordance with well-known Soviet synthesizers, produced in USSR back in the 80's and 90's.

Specification

  • Method of signal processing: analog;

  • Voltage Controlled Filters (VCF): two types — POLY (Polivoks filter) and RHYTHM (Ritm-2 filter);

  • The low frequency oscillator (LFO): one — triangle;

  • Audio inputs: two — mono jack socket for 6.3mm;

  • Audio outputs: three — mono jack socket for 6.3mm;

  • CV inputs: two — mono jack socket for 6.3mm;

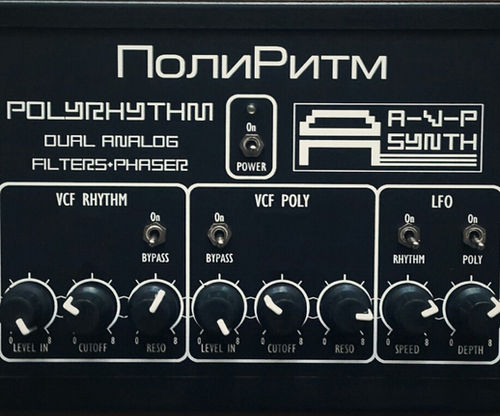

  • Controls: 8 knobs, 5 switches;

  • Power supply: 12V AC power adapter (supplied);

  • Hard plastic black case;

  • Weight: 1kg;

  • Dimensions: L13,5 x W18,5 x H5,5 (cm);

  • Voltage: 220V, voltage transformer is needed if you live in an area with 110V standard!

OUT OF PRODUCTION

Only x20 units were ever produced.

In this video, PolyRhythm is processing the following hardware synthesizers:
— Korg MS2000 (virtual-analog synthesizer)
— Roland Juno 60 (DCO analog polyphonic synthesizer)
— Korg Mono/Poly (VCO analog monophonic synthesizer)

A short multitrack of two Korg MS2000 sequences processed through PolyRhythm:

Audio of the PolyRhythm processing our ADB-5 Analog Drum Box:

A track made by one of our users, where Roland TB-303, drums and strings are being processed using the PolyRhythm:
